Design principles of adjustable dumbbells

Introduction

In the modern fitness equipment market, Adjustable Dumbbells have gradually become the first choice for fitness enthusiasts and home fitness users with their unique innovative design and versatility. It not only solves many limitations of traditional fixed-weight dumbbells, but also provides users with a more flexible, efficient and economical fitness solution through the combination of technology and design. Whether it is a beginner or a professional fitness person, adjustable dumbbells can meet their diverse needs. This article will explore the design principles of adjustable dumbbells in depth, from technical details, material selection to ergonomic design and market advantages, and comprehensively analyze the core value of this innovative product.

Part 1: Overview of adjustable dumbbells

Definition and features

Adjustable dumbbells are a type of fitness equipment that can change weights through simple operations. Unlike traditional fixed-weight dumbbells, it allows users to quickly adjust weights according to training needs without changing equipment. This flexibility allows users to complete exercises of multiple intensities in one training session, thereby improving training efficiency.

Its main features include:

Flexibility: Users can quickly adjust weights according to different training goals and adapt to various training plans.

Space saving: One adjustable dumbbell can replace multiple fixed-weight dumbbells, greatly reducing the need for storage space.

Economical: Compared with purchasing multiple fixed-weight dumbbells, adjustable dumbbells have a lower overall cost and higher cost-effectiveness.

Safety: A variety of safety mechanisms are incorporated into the design to ensure that no accidents occur during use and reduce the risk of injury.

Market significance

With the growing demand for home fitness, adjustable dumbbells have gradually become an important product in the fitness equipment market due to their versatility and portability. Especially during the epidemic, more and more people choose to do fitness training at home, and adjustable dumbbells have become an ideal choice for home fitness with their flexibility and efficiency. In addition, with the popularization of fitness concepts and the advancement of technology, the market demand for adjustable dumbbells is also expanding.

Part 2: Core design principles of adjustable dumbbells

Mechanical adjustment principle

Insert-type adjustment

Insert-type adjustment is one of the earliest designs of adjustable dumbbells. Users insert the dumbbell plates into the handle and fix them with positioning screws. This design is simple and intuitive, but the adjustment process is relatively cumbersome and requires users to manually tighten or loosen the screws. Despite this, it is still widely used in some economical adjustable dumbbells.

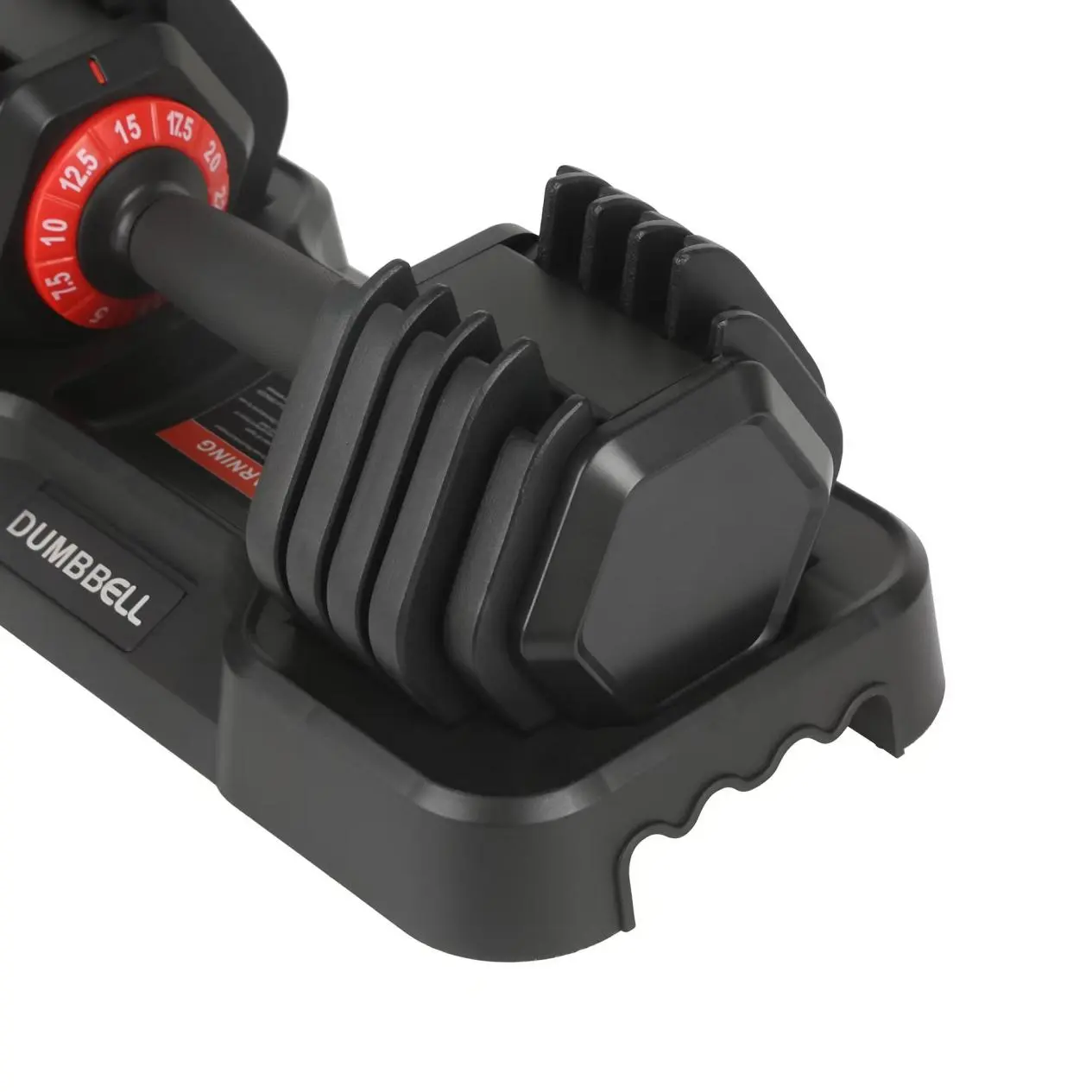

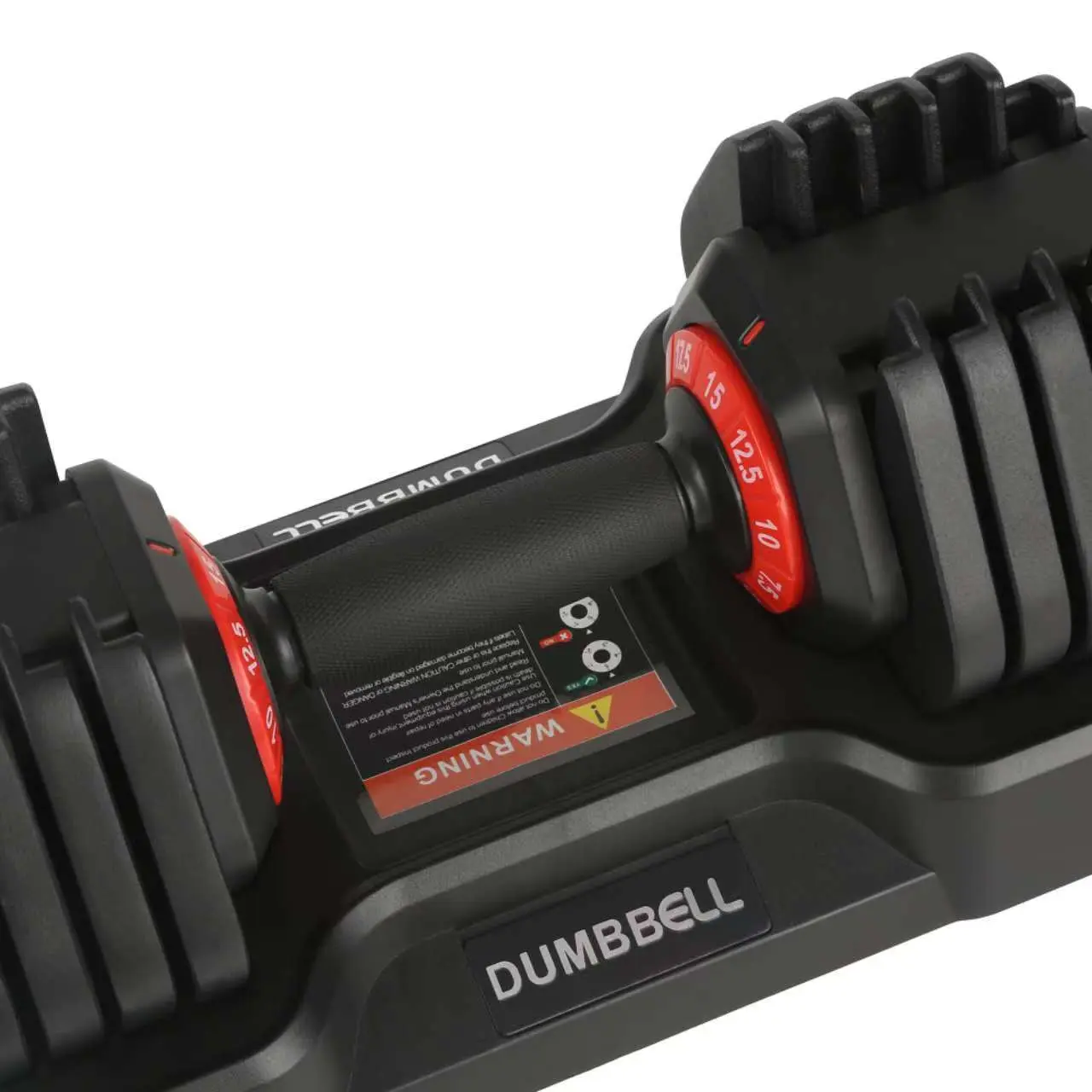

Rotary adjustment

Rotary adjustment is a more advanced design. The handle selects different gears by rotating, and the weight adjustment is achieved by the combination of the lock plate and the indexing plate. The user only needs to rotate the knob on the handle to quickly select the required weight. This design not only improves the adjustment speed, but also enhances the convenience of use.

Electronic adjustment principle

Blade structure

The electronically adjustable dumbbell is equipped with multiple blades inside, each blade represents a different weight. The user controls the motor rotation through the electronic system to move the blade to the appropriate position, thereby changing the total weight. This design makes the weight adjustment more precise and reduces the trouble of manual operation for users.

Motor and gear system

The motor drives the blade to move, and the gear system converts the rotational motion into linear motion for precise adjustment. This design not only improves the accuracy of adjustment, but also ensures the stability of the adjustment process.

Electronic control system

The user inputs instructions through buttons or touch screens, and the electronic system calculates and controls the motor to work and adjust the dumbbell weight. Some high-end products are also equipped with smart displays that can display the current weight and training data in real time, providing users with a more intuitive user experience.

Safety protection mechanism

Blade locking

In order to ensure safety, dumbbells are designed with a blade locking mechanism. During the adjustment process, the blades will be locked in a fixed position to prevent accidental movement during use.

Steel ball positioning

Steel ball positioning is a common safety design. Through the positioning effect of the steel ball, the dumbbell pieces will not loosen after adjustment, thereby improving the stability of use.

Real-time monitoring of weight changes

Some high-end adjustable dumbbells are equipped with a real-time monitoring system that can monitor weight changes and adjust them in time to ensure safety during use.

Part 3: Material and structural design

Material selection

Handle

The handle is usually made of iron or high-strength plastic, and the surface is designed with anti-slip texture or magnetic bumps to enhance the grip and provide massage function. These materials are not only durable, but also provide good feel and stability.

Dumbbell pieces

The dumbbell pieces are made of high-strength metal materials to ensure durability. There are through holes or bumps on the design for easy fixation and adjustment. Some high-end products also use special coating technology to reduce friction and wear.

Structural design

Connection between handle and dumbbell plate

The connection between the handle and dumbbell plate is achieved by fixing the rod or rotating the handle to ensure a firm connection and prevent loosening during use. This design not only improves the safety of use, but also extends the service life of the product.

Weight adjustment mechanism

The weight adjustment mechanism adopts a slider system or a rotating gear design, so that users can quickly select the required weight. The slider system changes the weight by sliding the position of the dumbbell plate, while the rotating gear design selects different weight gears by rotating the handle. Both designs have their own advantages and disadvantages, and users can choose the right product according to their needs.

Part 4: Ergonomic design

Handle design

The handle shape is ergonomic and designed with an uneven texture to help users better hold the dumbbell and prevent it from slipping. Some high-end products are also designed with adjustable handle lengths to accommodate users with different hand sizes.

Weight distribution

The weight distribution of the dumbbell is optimized to ensure balance during use, reduce shaking, and improve training results. This design not only improves the comfort of use, but also effectively reduces the fatigue of the user.

Part 5: Market Advantages of Adjustable Dumbbells

Flexibility

Users can quickly adjust the weight according to the training intensity and goals to adapt to different training needs. This flexibility makes adjustable dumbbells an ideal choice for versatile training.

Space Saving

An adjustable dumbbell can replace multiple fixed-weight dumbbells, greatly reducing the need for storage space. This is especially important for home users because it can save valuable home space.

Affordable

Compared to buying multiple fixed-weight dumbbells, adjustable dumbbells have a lower overall cost and higher cost-effectiveness. Users only need to buy one set of adjustable dumbbells to meet a variety of training needs.

Safety

A variety of safety mechanisms are incorporated into the design to ensure that no accidents occur during use and reduce the risk of injury. This makes adjustable dumbbells an ideal choice for home fitness and beginners.

Part 6: Future Development Trends

Intelligence

With the advancement of technology, adjustable dumbbells may integrate more intelligent functions, such as real-time weight display, training data analysis, etc. Some high-end products have begun to be equipped with smart sensors and Bluetooth connectivity, which can synchronize training data to mobile phone applications, providing users with a more comprehensive fitness experience.

Lightweight design

Lighter materials may be used in the future to further enhance the user experience. For example, using lightweight materials such as carbon fiber or high-strength aluminum alloy can not only reduce the weight of dumbbells, but also improve their durability.

Versatility

Combining the functions of other fitness equipment to develop more diverse training methods. For example, combining dumbbells with elastic bands or fitness balls can provide more abundant training options. In addition, some products may be designed as detachable modular structures, and users can freely combine different training equipment according to their needs.

Conclusion

The design principle of adjustable dumbbells embodies the perfect combination of technological innovation and user experience. Through the combination of mechanical and electronic adjustment technology, it provides users with a flexible, efficient and safe fitness solution. With the continuous advancement of technology, adjustable dumbbells will continue to lead the development of the fitness equipment market in the future, bringing convenience and value to more users. Whether it is home fitness or professional training, adjustable dumbbells will become one of the indispensable fitness equipment.
